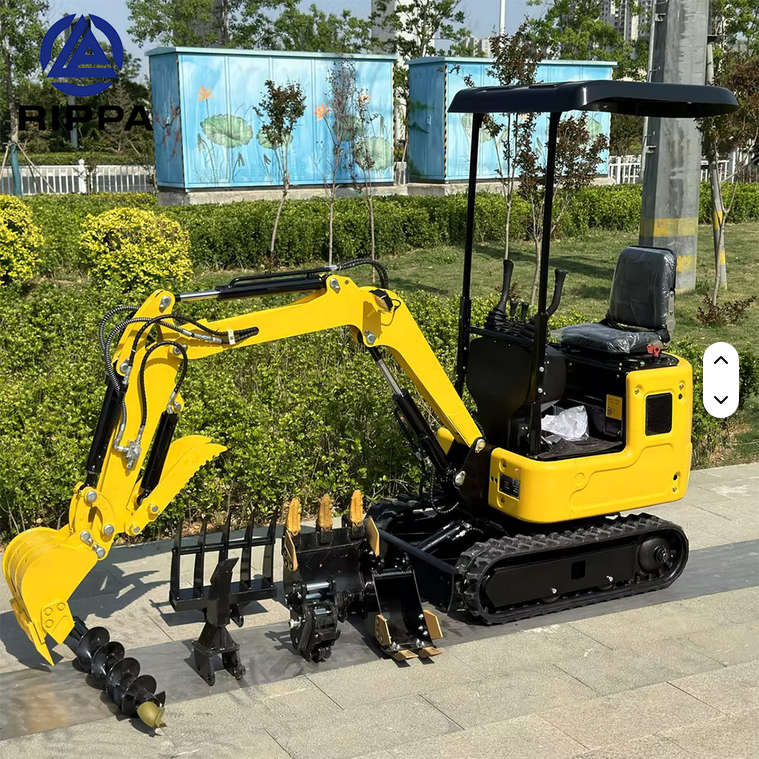

It would be a lot easier if you could just grab any bucket off a lot and snap it onto your mini excavator. Unfortunately, mini excavator buckets are not universal. While a bucket might look like a simple piece of metal, the connection points are precision-engineered for specific machine makes and models.
If you’re looking to add a new bucket to your lineup, here is why "one size fits all" is a myth in the heavy equipment world.
1. The Geometry of Pins and Ears
The most common hurdle is the mounting hardware. Even if two machines are the same weight class, the "pin-on" dimensions often differ. You must verify three specific measurements:
-
Pin Diameter: Even a few millimeters of difference will prevent the pin from sliding in or cause dangerous wobbling.
-
Pin Spacing (Center-to-Center): If this distance is off, your bucket cylinders won't curl or dump correctly.
-
Ear Width: This is the internal clearance between the bucket plates. If it’s too narrow, it won't fit the dipper arm; if it’s too wide, the bucket will slide side-to-side.
Manufacturers like Kubota, Bobcat, and Caterpillar often use proprietary specs to keep you within their specific attachment ecosystem.
2. The Quick Coupler Headache
Many modern operators use quick couplers to swap attachments in seconds. However, these systems add another layer of complexity:
-
System Styles: A bucket designed for a Wain-Roy coupler will not fit a Verachtert system.
-
Mechanical vs. Hydraulic: Some pins are set up for manual locking, while others require specific shapes for hydraulic grabs.
3. Weight Classes and Hydraulic Flow
Physically "pinning" a bucket onto a machine doesn't mean it’s safe to use. Buckets are engineered to match a machine’s breakout force:
-
Oversized Buckets: These can strain hydraulic seals, increase fuel consumption, and cause the machine to tip when the arm is fully extended.
-
Undersized Buckets: A larger machine’s power can easily crack the welds or bend the ears of a bucket meant for a smaller weight class.
Mini Excavator Bucket Measurement Cheat Sheet
Print this out or save it to your phone for the next time you visit a yard.
| Measurement Point | What to Measure | Your Machine's Specs |
| 1. Pin Diameter | The thickness of the pins that go through the arm. | _________ (mm/inches) |
| 2. Pin Spread | Distance from the center of the front pin to the center of the back pin. | _________ (mm/inches) |
| 3. Ear Width | The inside distance between the two metal plates (ears) on the bucket. | _________ (mm/inches) |
| 4. Dipper Width | The outside width of the end of your machine's arm (where it slides into the bucket). | _________ (mm/inches) |
| 5. Machine Model | Your excavator's Make, Model, and Year. | ____________________ |
Pro Tips for Accurate Measuring
-
Use Calipers if Possible: Pin diameters are often separated by only 5mm or 10mm (e.g., 35mm vs. 40mm). A standard tape measure can be tricky to read at that precision; digital calipers are much more reliable.
-
Clean the Grease: Before measuring, wipe away excess grease from the pins and the bushings. Even a thick layer of old grease can throw off your reading by a millimeter or two.
-
The "Ear vs. Dipper" Rule: Your Ear Width (on the bucket) must be slightly wider than your Dipper Width (on the arm) to allow for movement. If the ear width is too wide, you can often use "shims" (spacers) to snug it up, but if it's too narrow, the bucket simply won't fit.
-
Check for Bushings: Check if your current bucket uses bushings (removable sleeves). Sometimes a bucket looks like it won't fit until you realize you can swap the bushings to match your pin size.
The Bottom Line
Before you buy a used bucket, grab a tape measure. You need to verify your machine's pin diameter, pin spacing, and dipper arm width. When in doubt, call your dealer with your machine's serial number. It is much cheaper to verify specs now than to pay a machine shop to cut and re-weld a bucket that doesn't fit.
